Binoculars Carl Zeiss Jena Silvarem 6x (1)

?Magnification: 6x
Aperture (objective diameter): 30 mm
Field of view: 8.5°
Exit pupil diameter: 5 mm
Visible field of view (eyepiece FOV): 50°
The closest focusing distance: 4.5 m
Width: 16.7 cm
Height: 11.5 cm
Weight: 720 g
Production date: 1914.

   Binoculars with central focusing appeared on the market in the middle of the 19th century. Carl Zeiss engineers were not in a hurry with such devices’ production, since they considered them less reliable and protected from dust and dirt. First prototypes of these binoculars were produced in Jena back in 1907, but only in 1909/1910 Carl Zeiss was forced to begin mass production of the devices of such design under the competitors’ pressure and because of the demand. First models of central-focus binoculars appeared in T136 catalog in 1910–those were Teletur 6x15, Telexem 6x21, Telactem 8x24 and Silvarem 6x30. Subsequently, all civilian Carl Zeiss binoculars with central focusing had an “...em” ending in their designations.
   The Silvarem 6x (30) binoculars turned out to be very successful in design and optical characteristics and was produced from 1909 to 1969.
   The presented specimen refers to the third version of this model (it was produced during a short period of time from 1913-14 to 1915) and it has the following features:
   - the binocular design is characterized by long carcass and short lens frames (the first version of this model had another design, with short carcass and long lens frames of the double-ring type with leather coating);

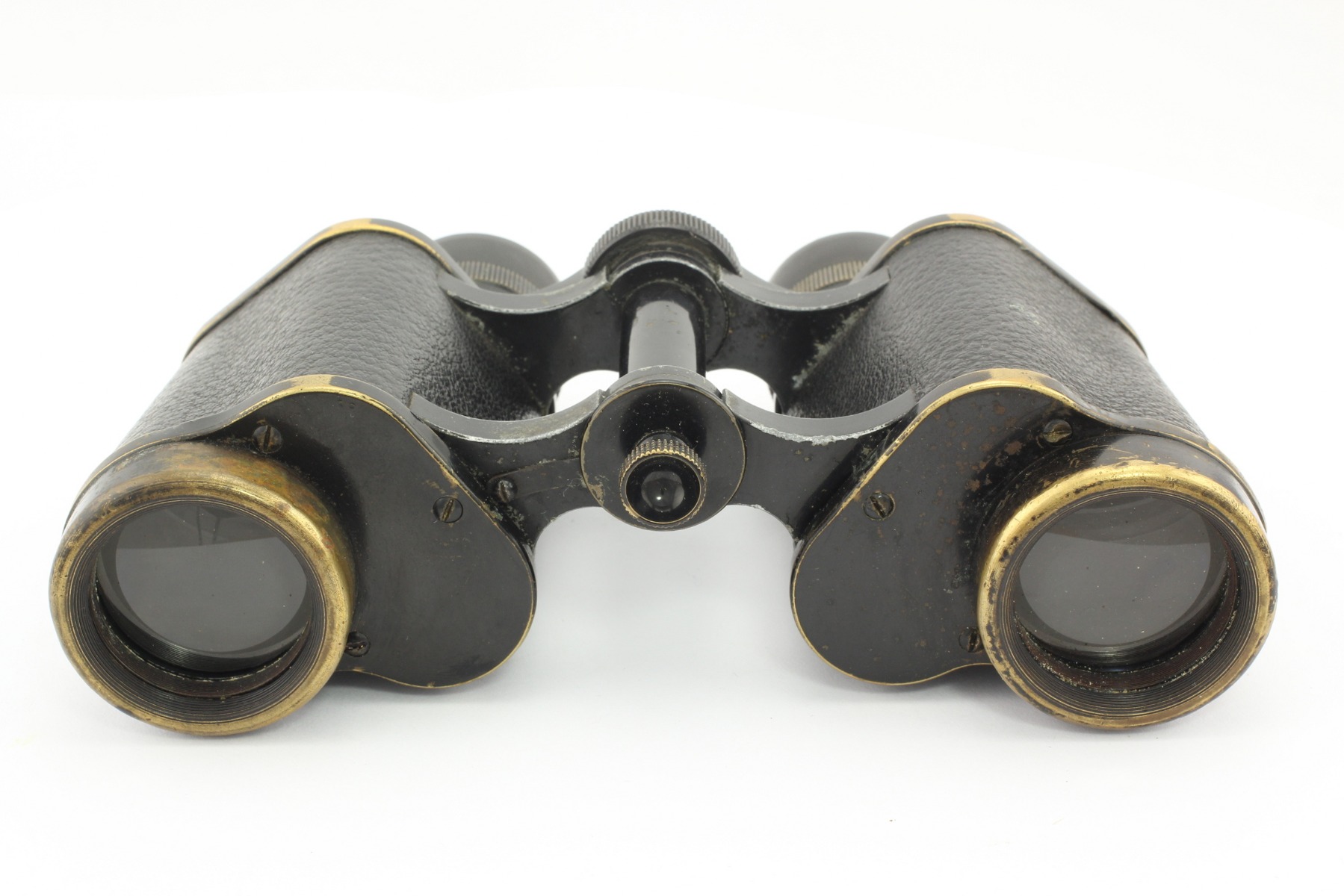

   - the lens caps are made with rounded edges and light-protective grooves for spurious flares minimization;
   - the prism covers are fastened with the help of three screws;
   - there is a diopter scale on the central focusing wheel (the first version of this model did not have it);

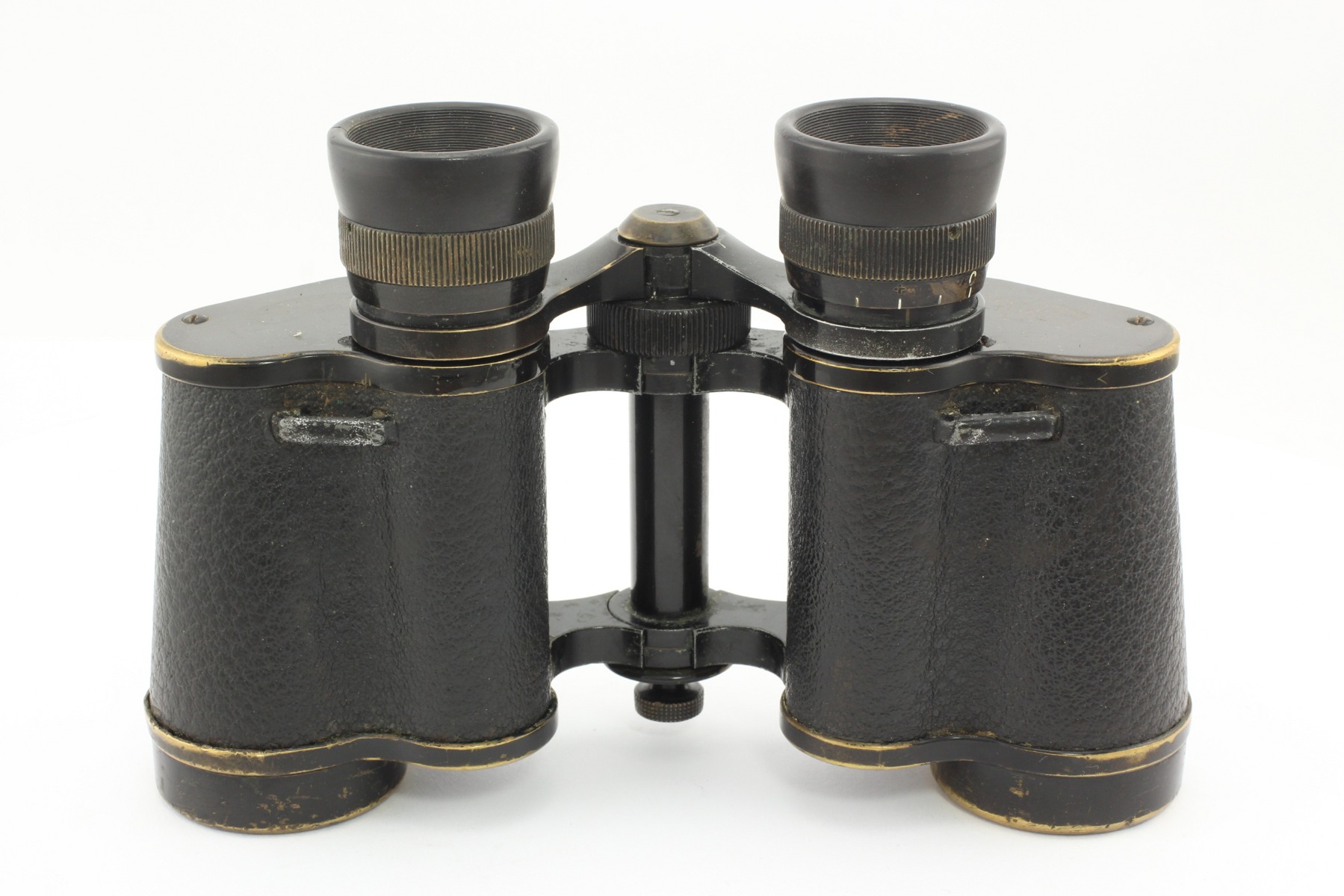

   - the central focusing ocular bridge shoulders have fork structure (see photo), they have a large thickening closer to the hinges and they are made of different materials: the left shoulder is made of brass, the right shoulder is made of aluminum alloy;
   - the eyepieces front lens’s diameter is equal to 11.5 mm, the binocular’s field of view is equal to 8.5° (these values were respectively equal to 12.7 mm and 8.4° for the first version of this model)

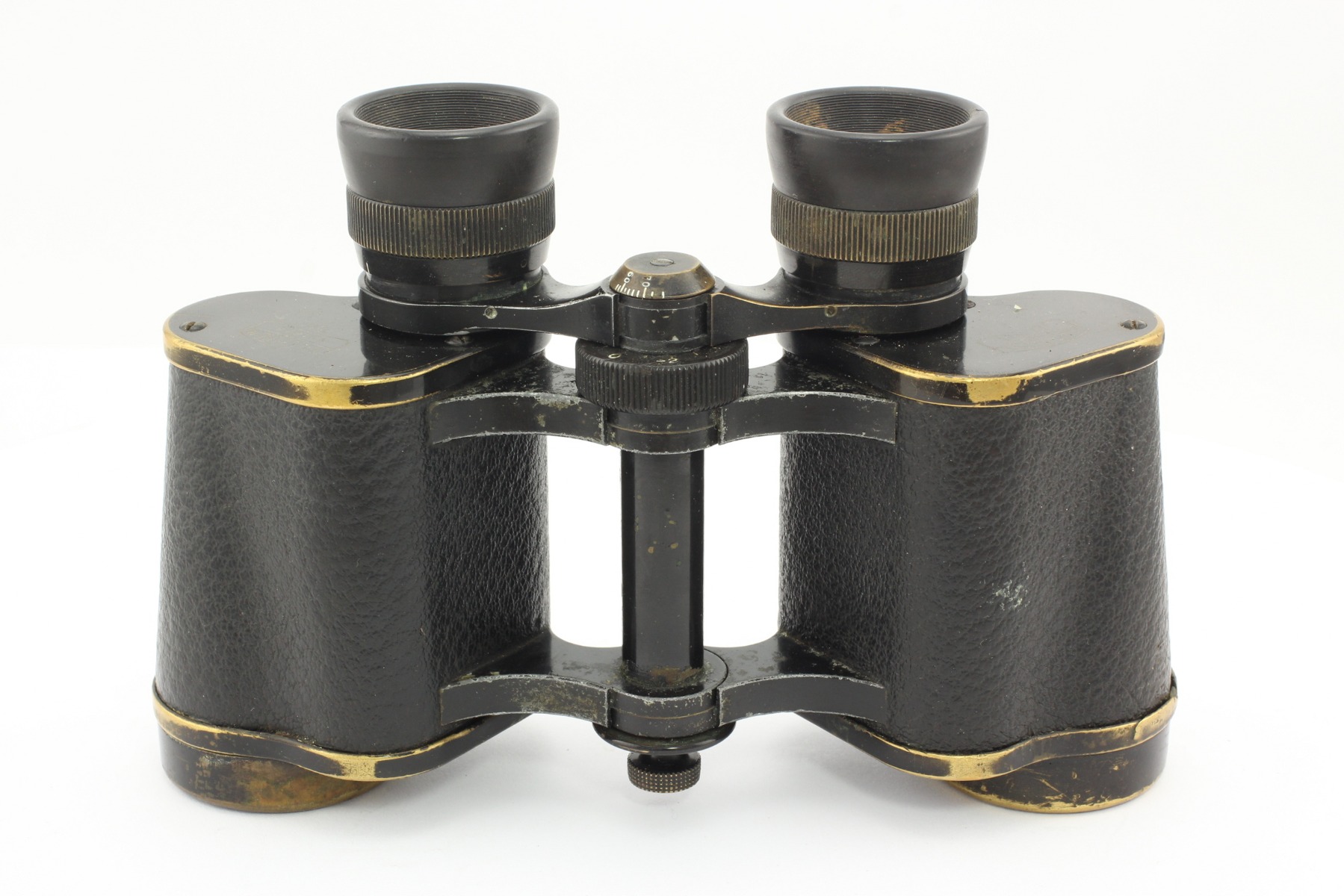

   The binocular’s “civilian” application is proved by the central focusing mechanism and the central hinge fixture’s (clamp’s) small diameter (see photo), which has a hole for a knob (included to binoculars delivery kit), with the help of which the hinge could have been finally fixed depending on the observer’s interpupillary distance. The interpupillary distances scale is indicated on the upper hinge disk. The right eyepiece has its own focusing mechanism with a diopter scale.
   The base diameter of this device’s eyepieces is equal to 24.5 mm and the top prismatic cap width is equal to 52 mm (see photo). The eyepieces have a longitudinal knurling. The binocular’s case height (including the upper prism cover) is equal to 77 mm; the binocular’s height without lens frame is equal to 66 mm.

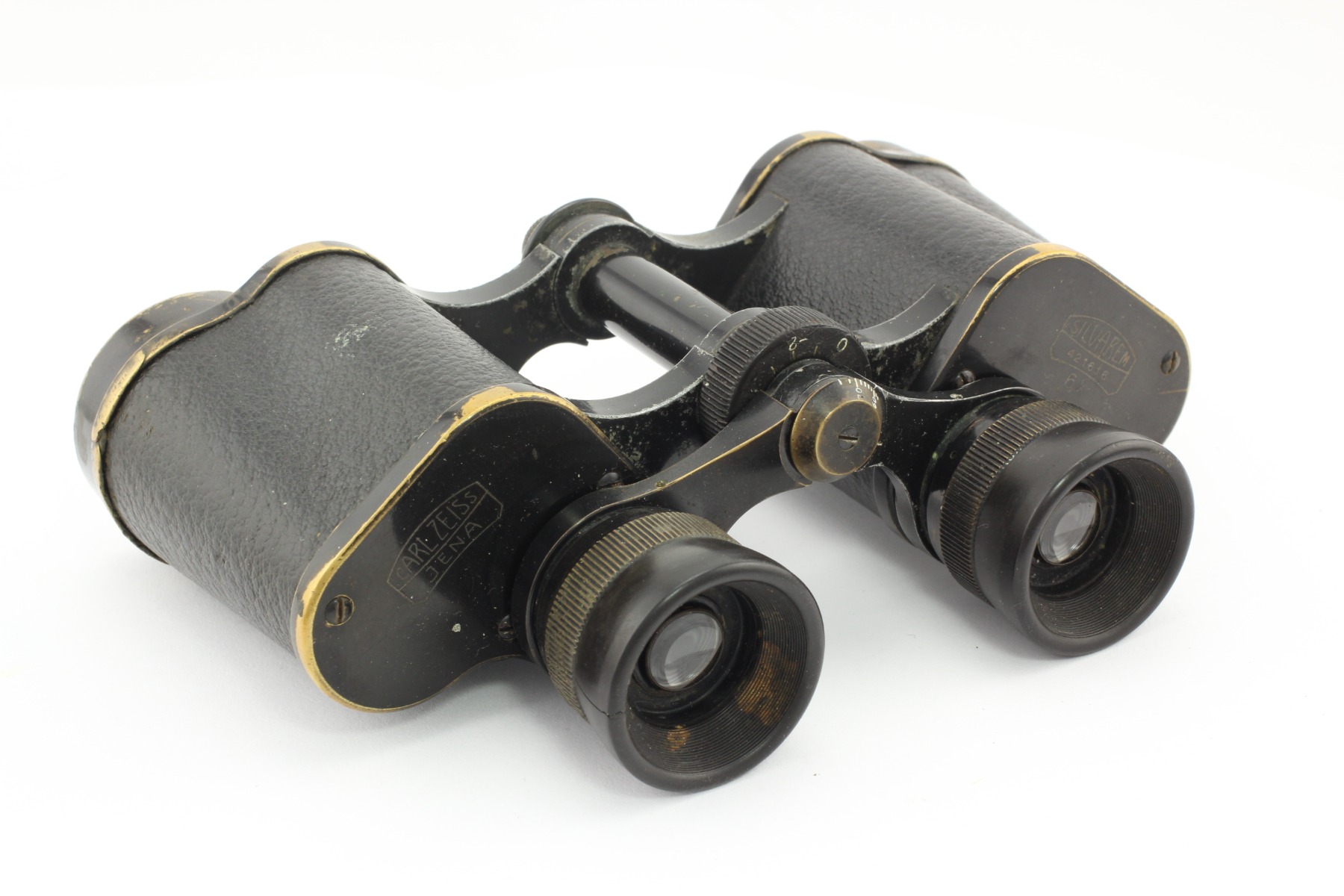

   There are inscriptions “Carl Zeiss Jenna” on the left prism cover. There is also an inscription “Silvarem 421616 6x” on the right prism cover. The inscription is made in block letters on the background of Carl Zeiss Tessar photo lens schematic image.

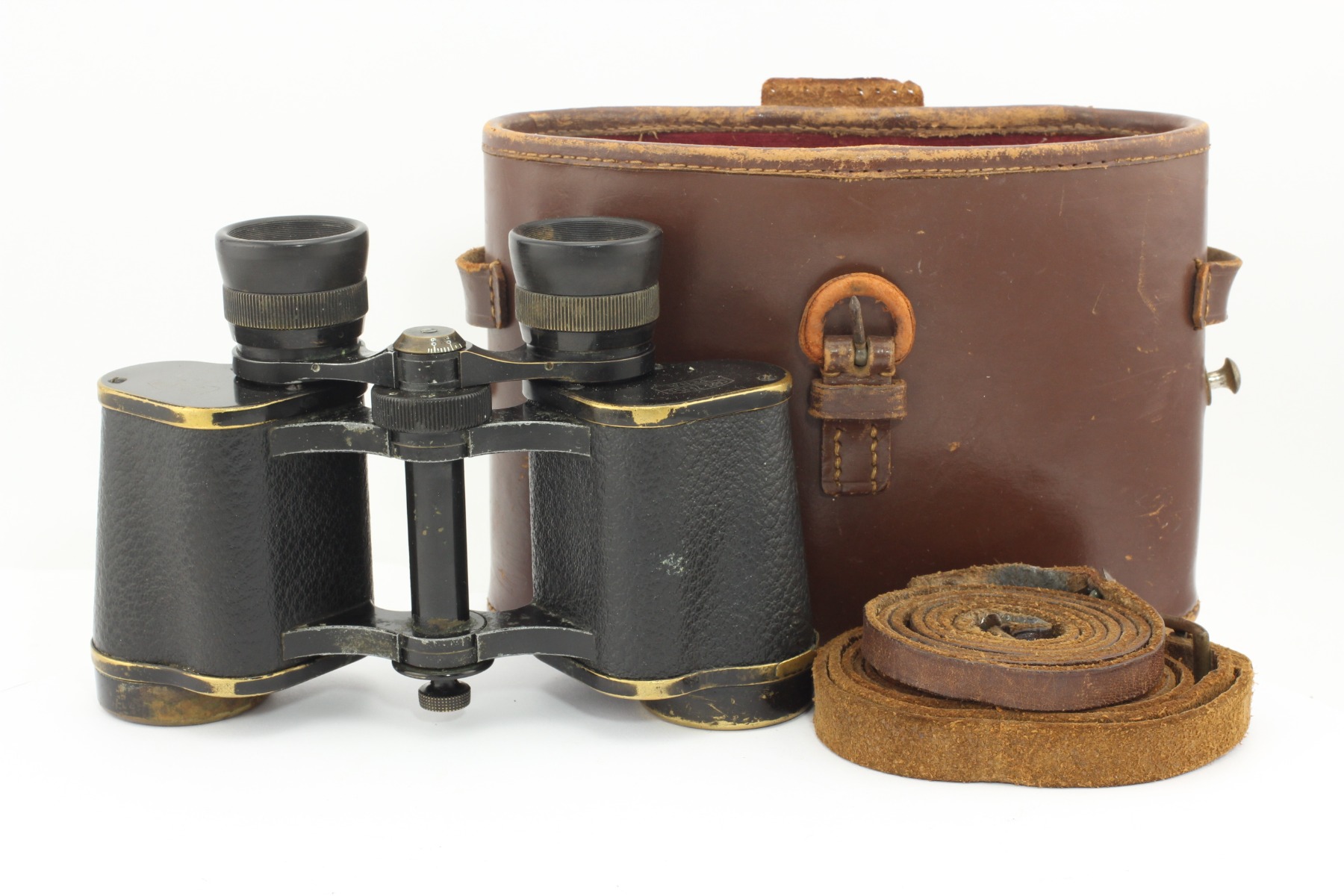

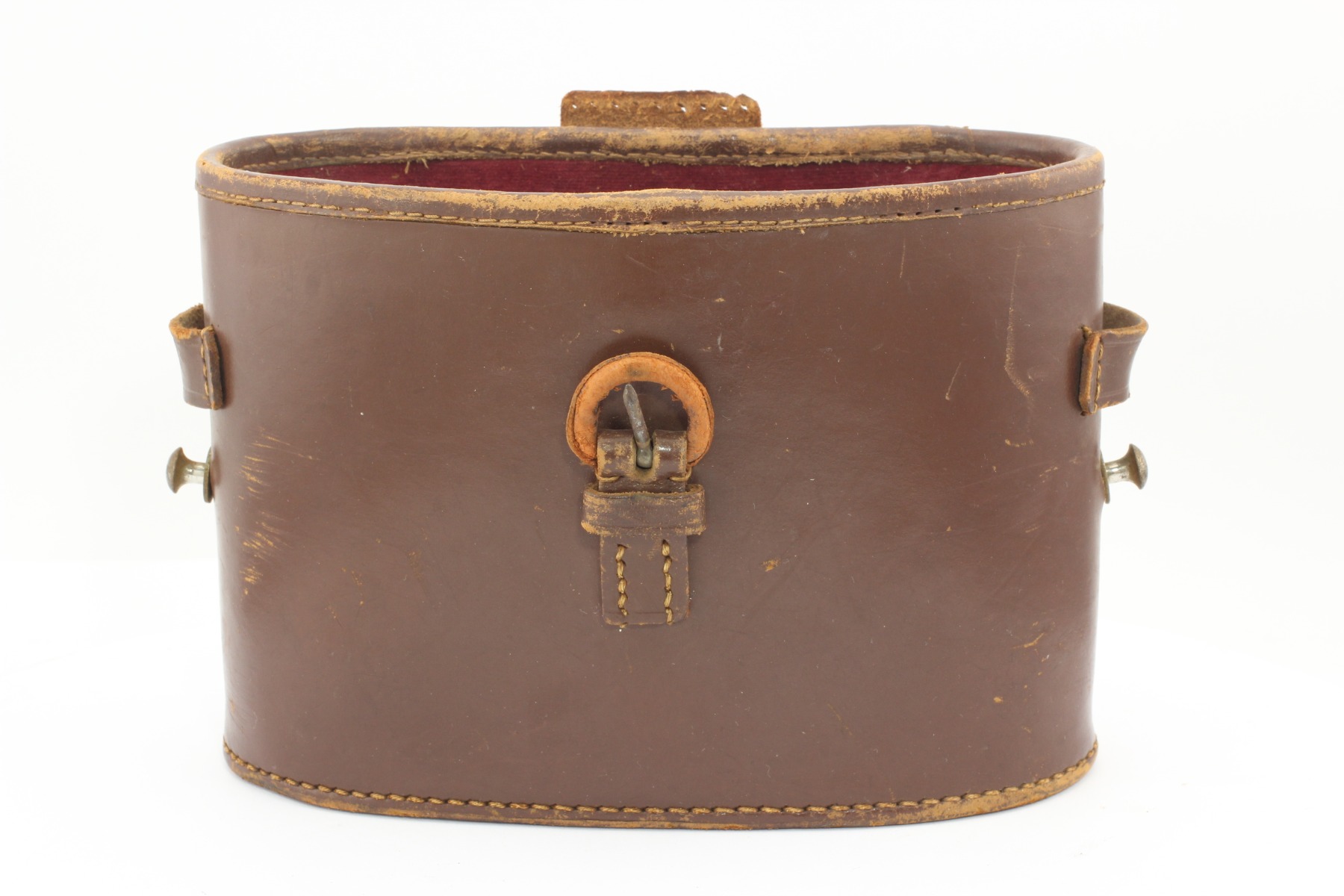

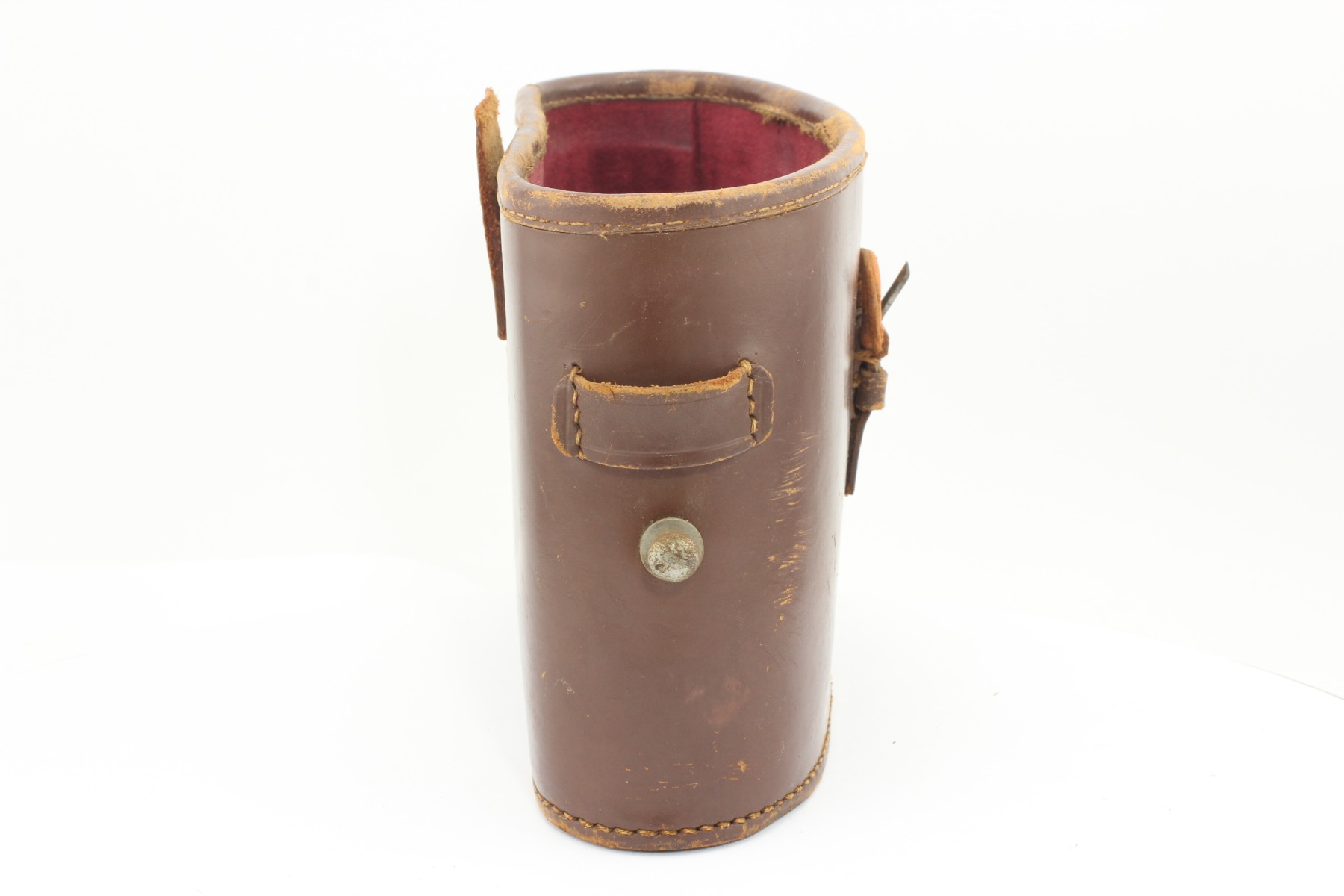

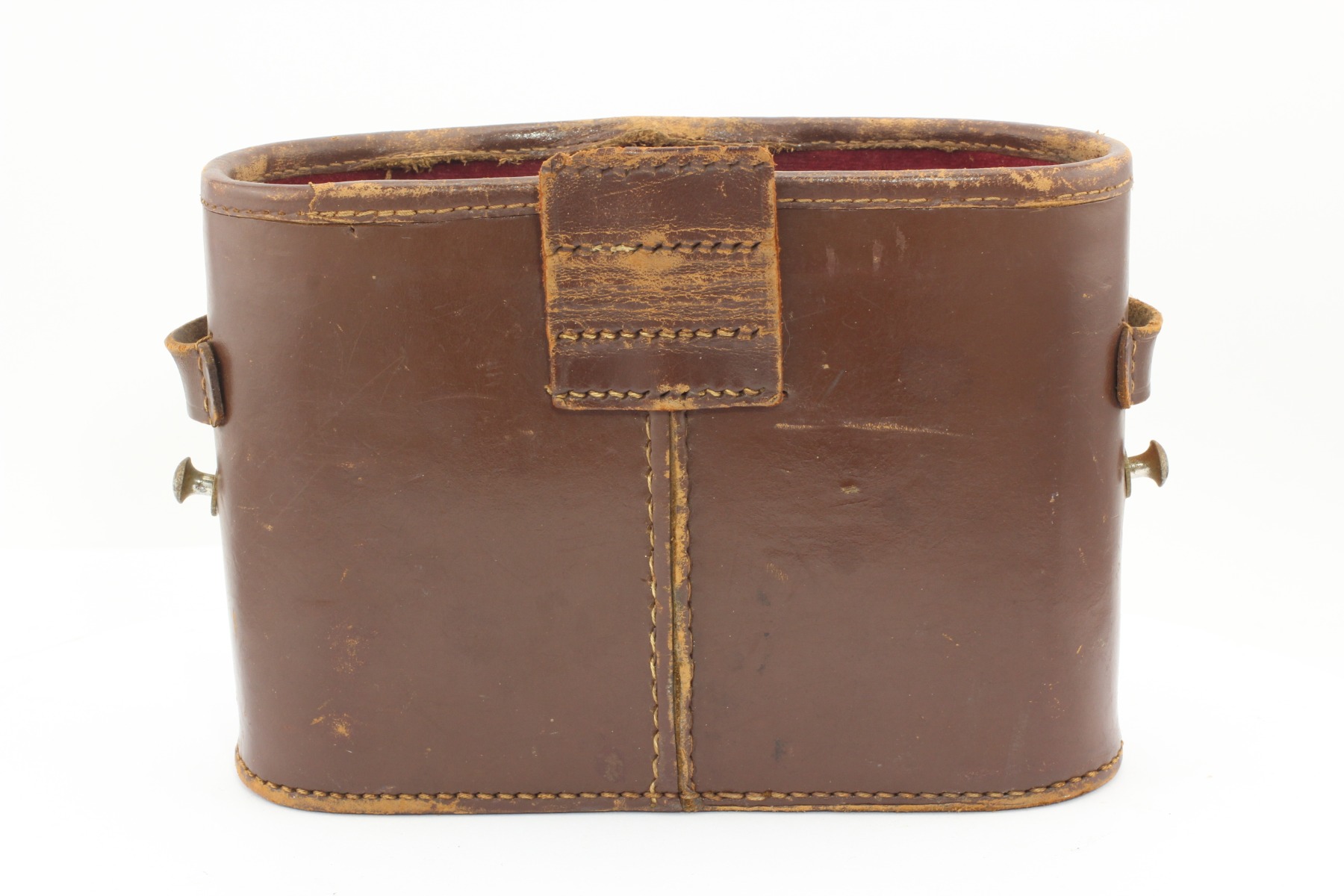

   It is most likely that the coffer does not belong to this binocular, since it does not possess Carl Zeiss Jena binocular coffers’ characteristic features of that period.
   The device’s serial number is 421616 and it was manufactured in 1914 as a 200 pieces batch.
