Binoculars Carl Zeiss Jena Feldstecher Vergr.=10

   Along with the “civilian” 4x, 6x and 8x Feldstecher binoculars, 4 new “civil” devices were manufactured at the end of 1896: Jagdglas (optics for hunting) Vergr.= 5, Jagdglas Vergr.= 7 1/2, Feldstecher Vergr.= 10 and Feldstecher Vergr. = 12. All of them had objective diameter equal to 24 mm (this value equaled to 25 mm for the binoculars of first releases), the 25 mm eyepiece tube diameter and the 55 mm top prism cover width. The latter had curved design, the so-called “bent shoulders”, which was borrowed from D.F.95 military binoculars, manufactured in 1895. These 4 models were produced in such appearance until 1907/1908 (with an exception of the eyepieces design changes, the upper hinge disc and transition from italics to block letters). Nearly 12,000 of such binoculars were produced between 1896 and 1908.

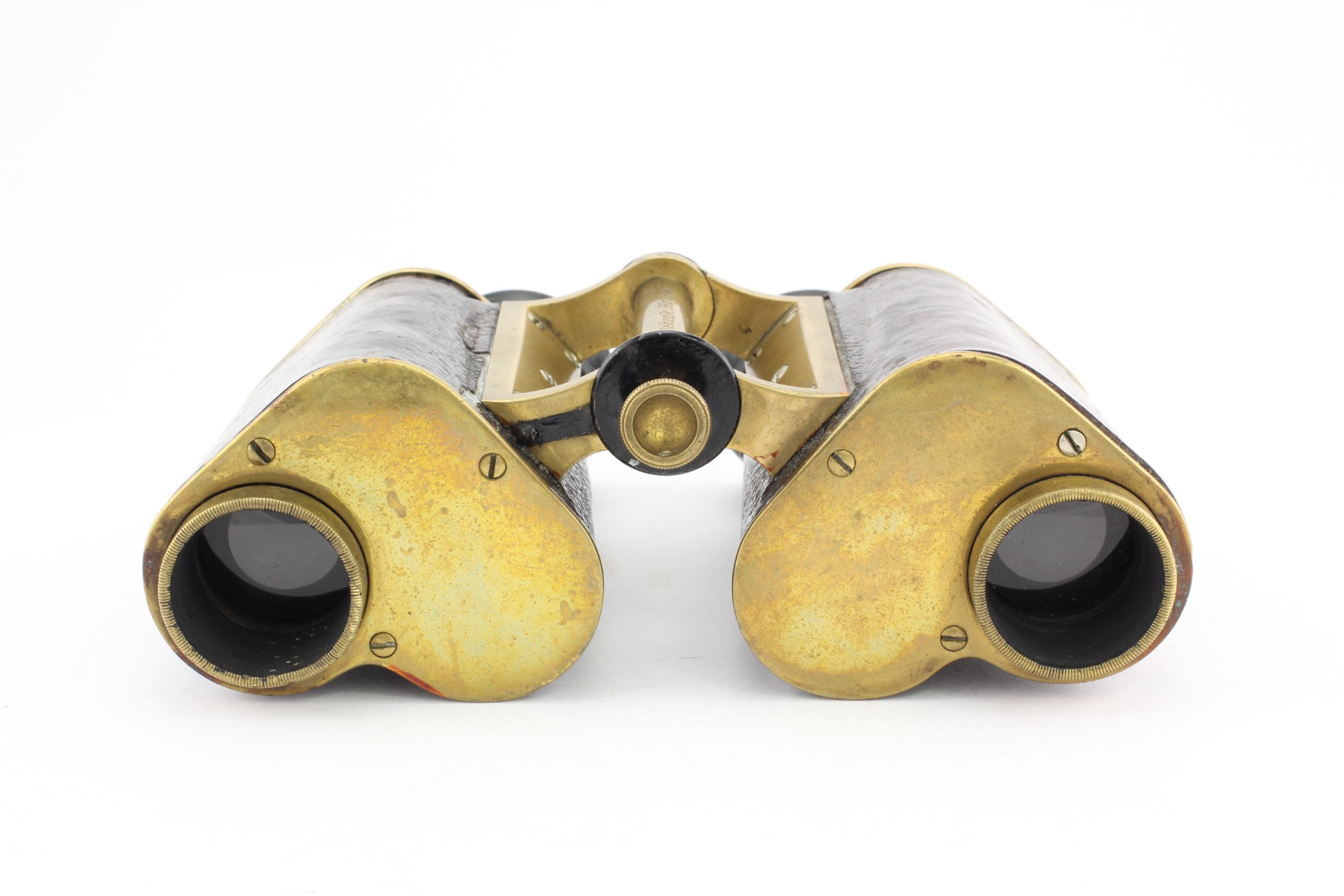

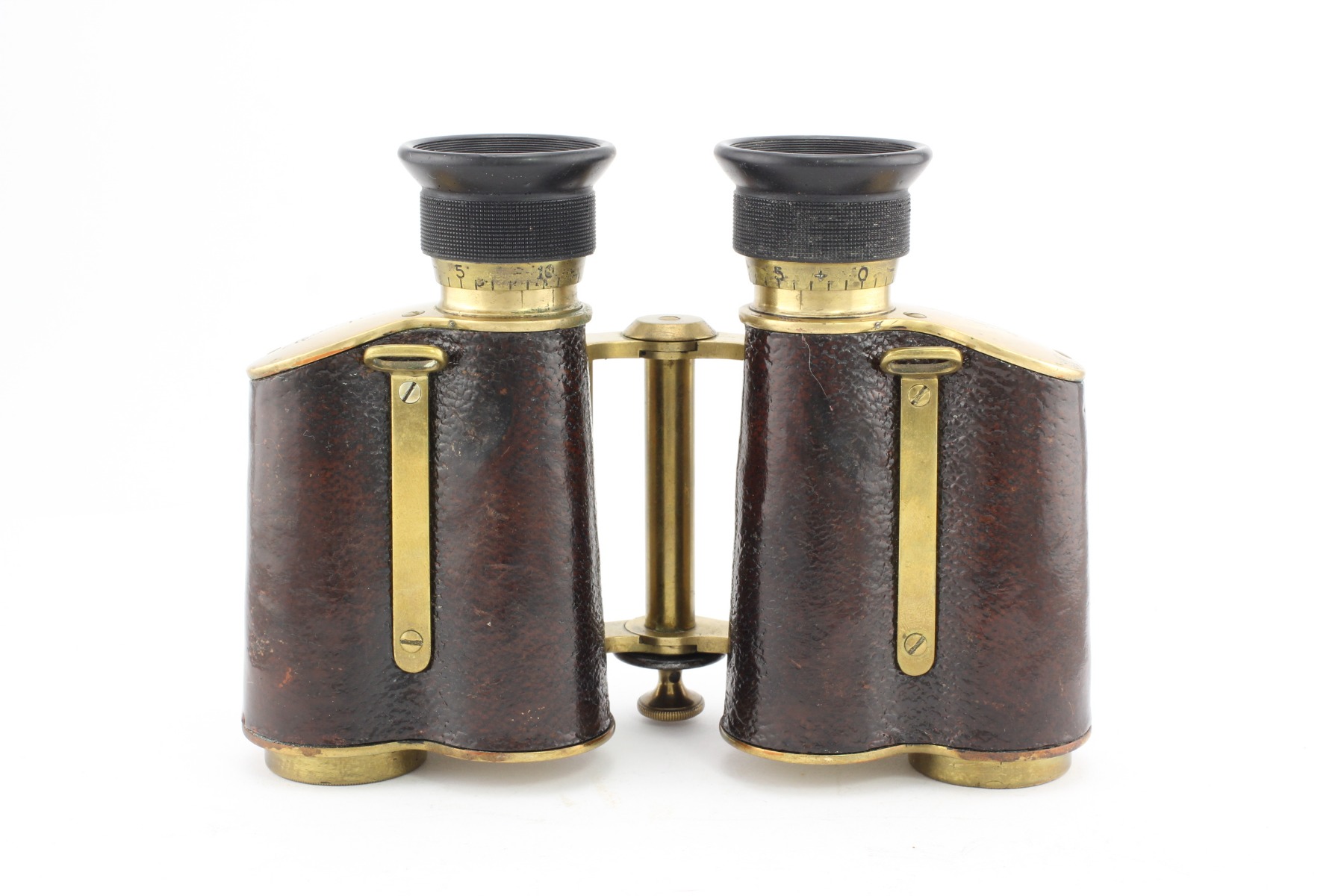

    The brass-made prism covers of the so-called “bent shoulders” type and a central hinge, which is attached to binoculars halves with the help of screws belong to distinctive features of Feldstecher Vergr.=10 model. The civilian application of this model is also proved by the central hinge fixture’s (clamp’s) small diameter (see photo), which has a hole for a knob (included to binoculars delivery kit), with the help of which the hinge could have been finally fixed depending on the observer’s interpupillary distance. The “earlier” 4-x and 6-x models have the same fixture design. The interpupillary distances scale is indicated on the upper hinge disk (this scale was absent in earlier models and the disc had a flat shape). This model’s objective diameter is equal to 24 mm (the earlier model had an aperture equal to 25 mm) and 10x magnification.

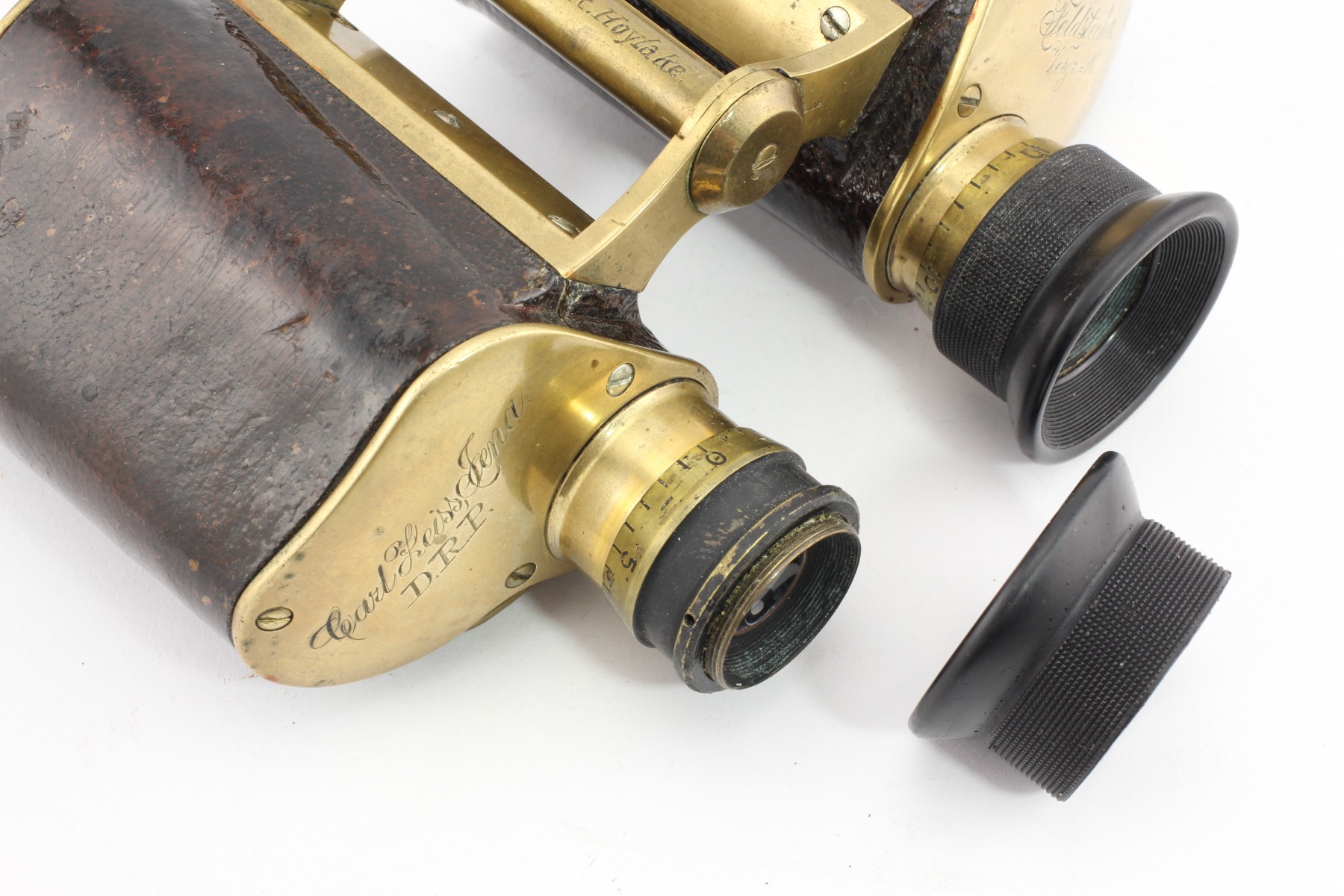

    This device possesses eyepieces of the so-called "2/3" transitional design (see Hans T.Seeger. Zeiss-Feldstecher, Handfernglaser von 1894-1919, Modelle-Merkmale-Mythos, p.97). The binoculars with such eyepieces design were produced approximately from the end of 1898 to 1907 and it was peculiar exceptionally for civil models (see photo).

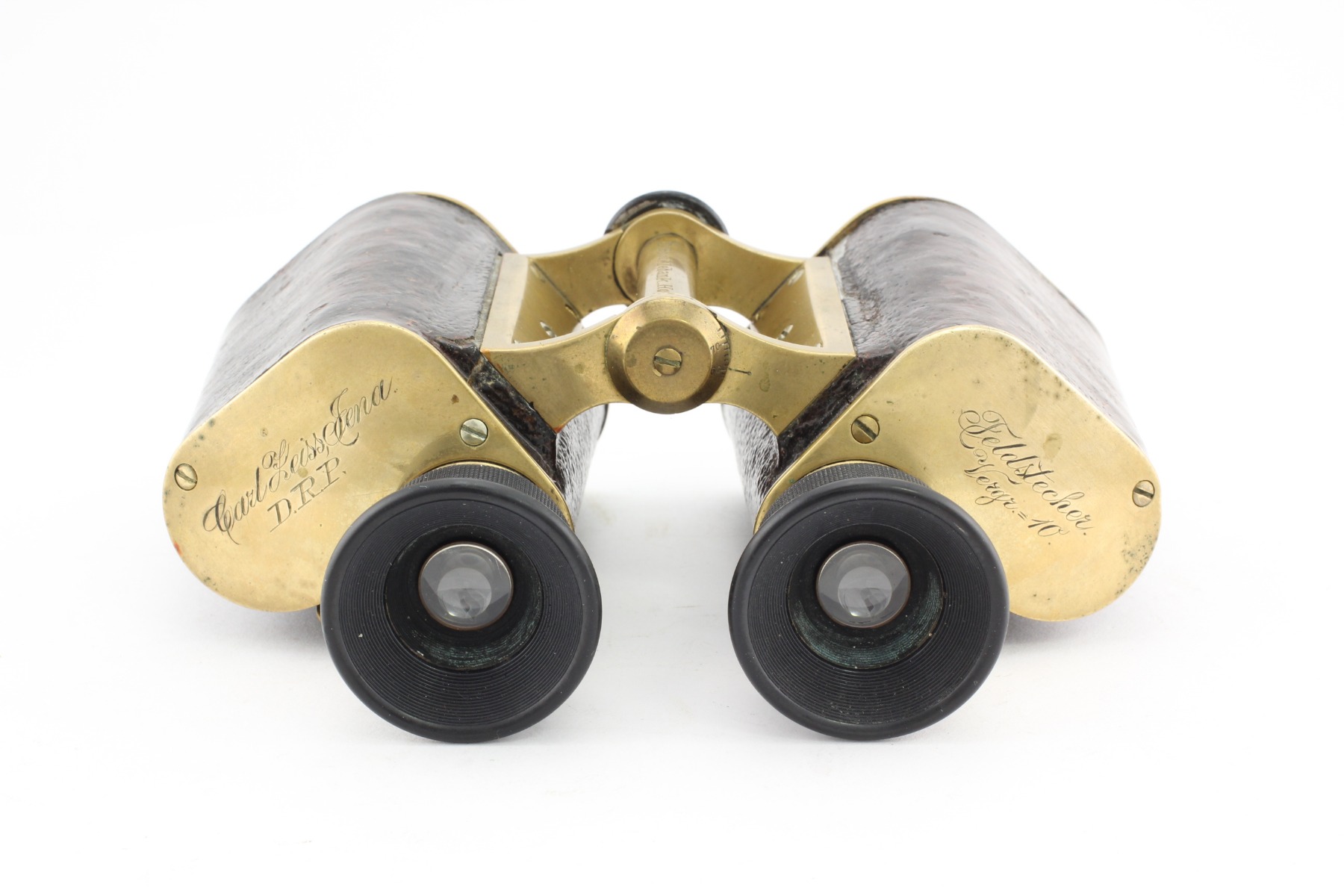

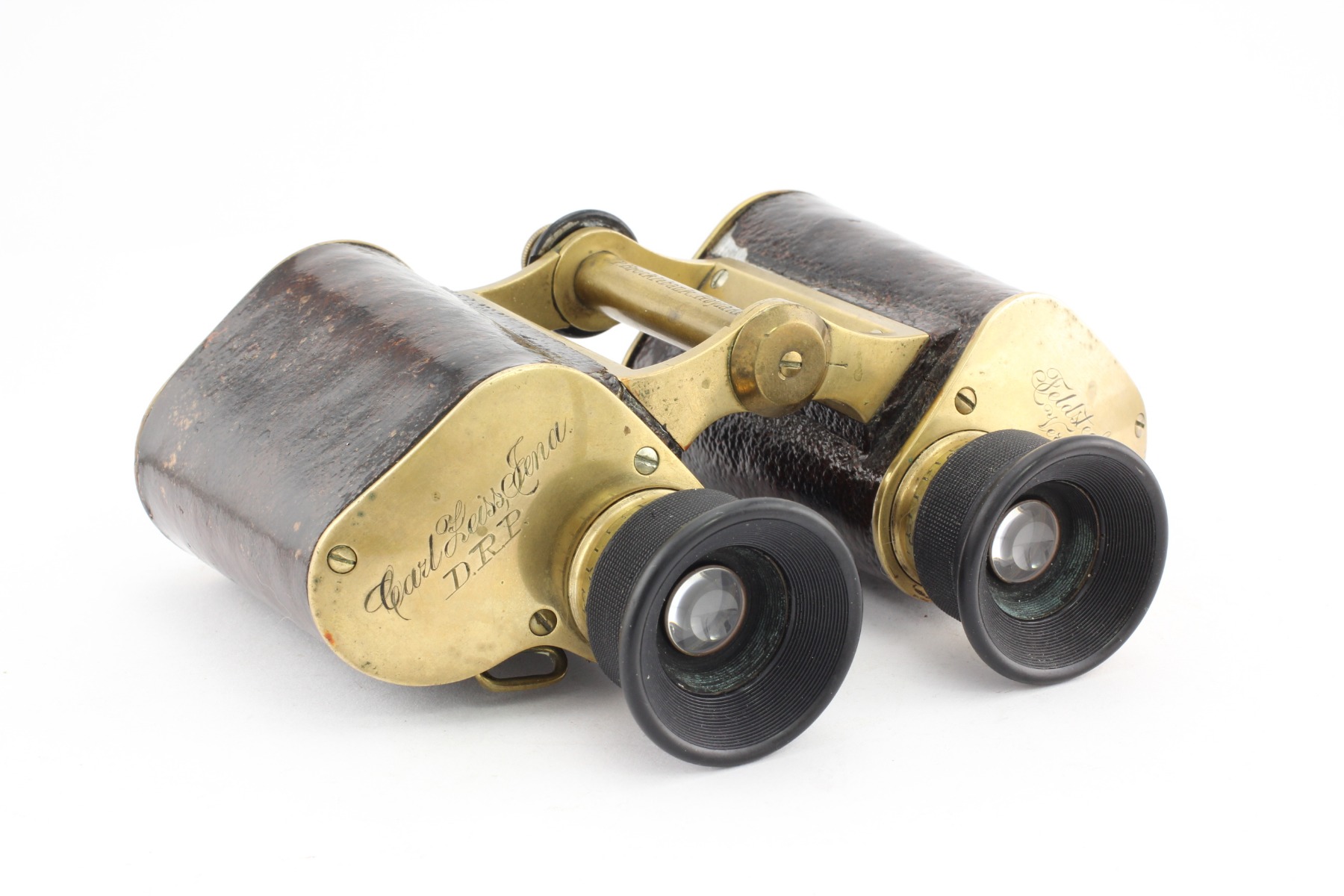

The binoculars frame hinge is attached to its halves with the help of 5 screws from each side. The device has long “lugs” for a neck strap, which are attached to binoculars with the help of 2 screws. There are inscriptions “Carl Zeiss, Jena. D.R.P.” on the left prism cover. D.R.P. is an abbreviation for Deutsches Reichs Patent. There is also an inscription “Feldstecher. Vergr.=10.” – “Binoculars. Magnification=10” on the right prism cover. The inscription is encrusted in italics (since 1904 the inscription had been made in block letters against the background of Carl Zeiss Tessar photo lens schematic image).

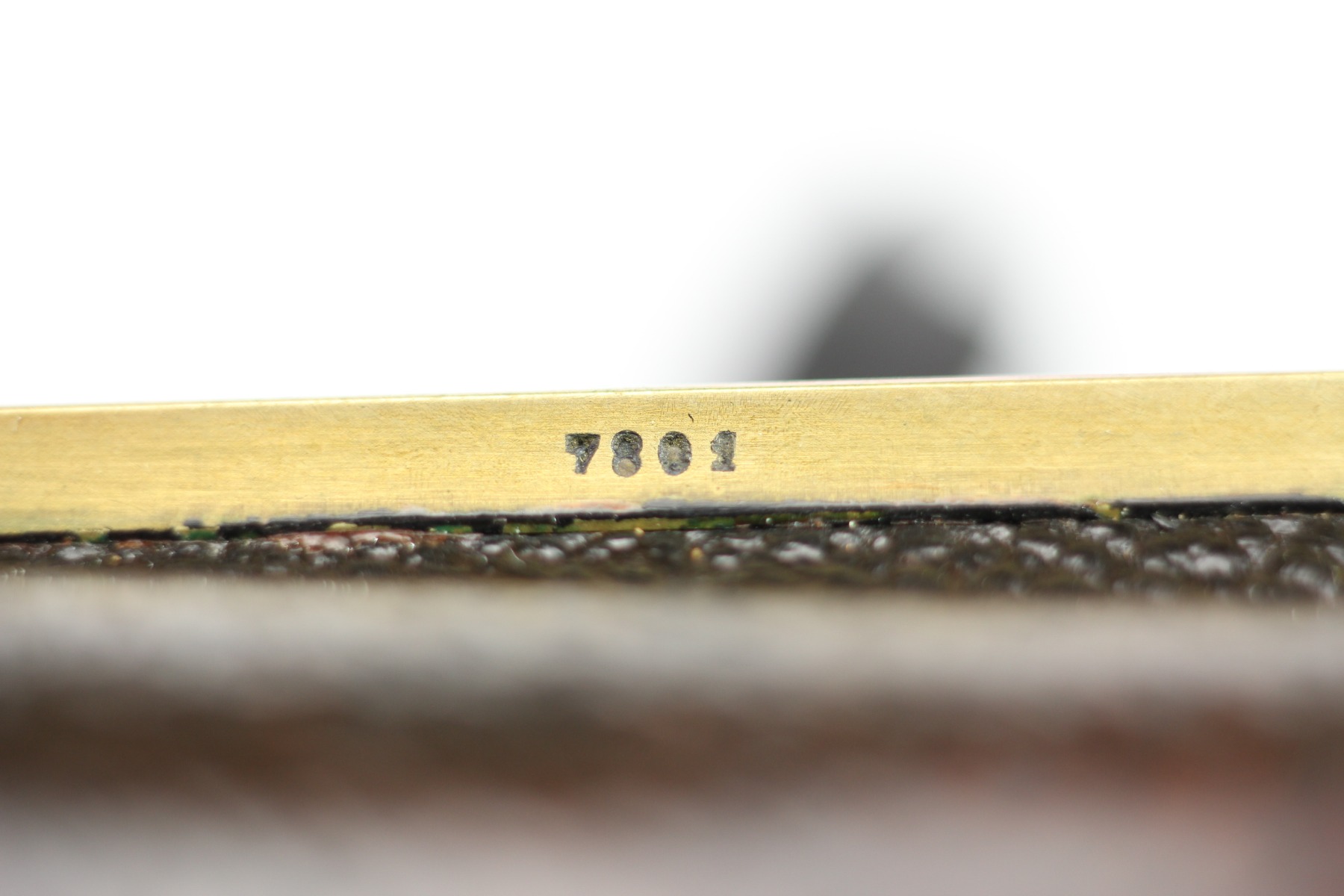

    The binocular’s serial number is "7801" and it was produced in 1903-1904. The continuous serial numbering of all Carl Zeiss Jena binoculars was absent at that time (it appeared only at the end of 1907); however there are some facts proving that the serial numbering was of the general type (continuous) within these 4 models with curved upper prism covers - the so-called “bent shoulders” (see Hans T.Seeger. Zeiss-Feldstecher, Handfernglaser von 1894-1919, Modelle-Merkmale-Mythos, p.141 and Production of Carl Zeiss Binoculars 1894-1908 by Thomas Antoniades).

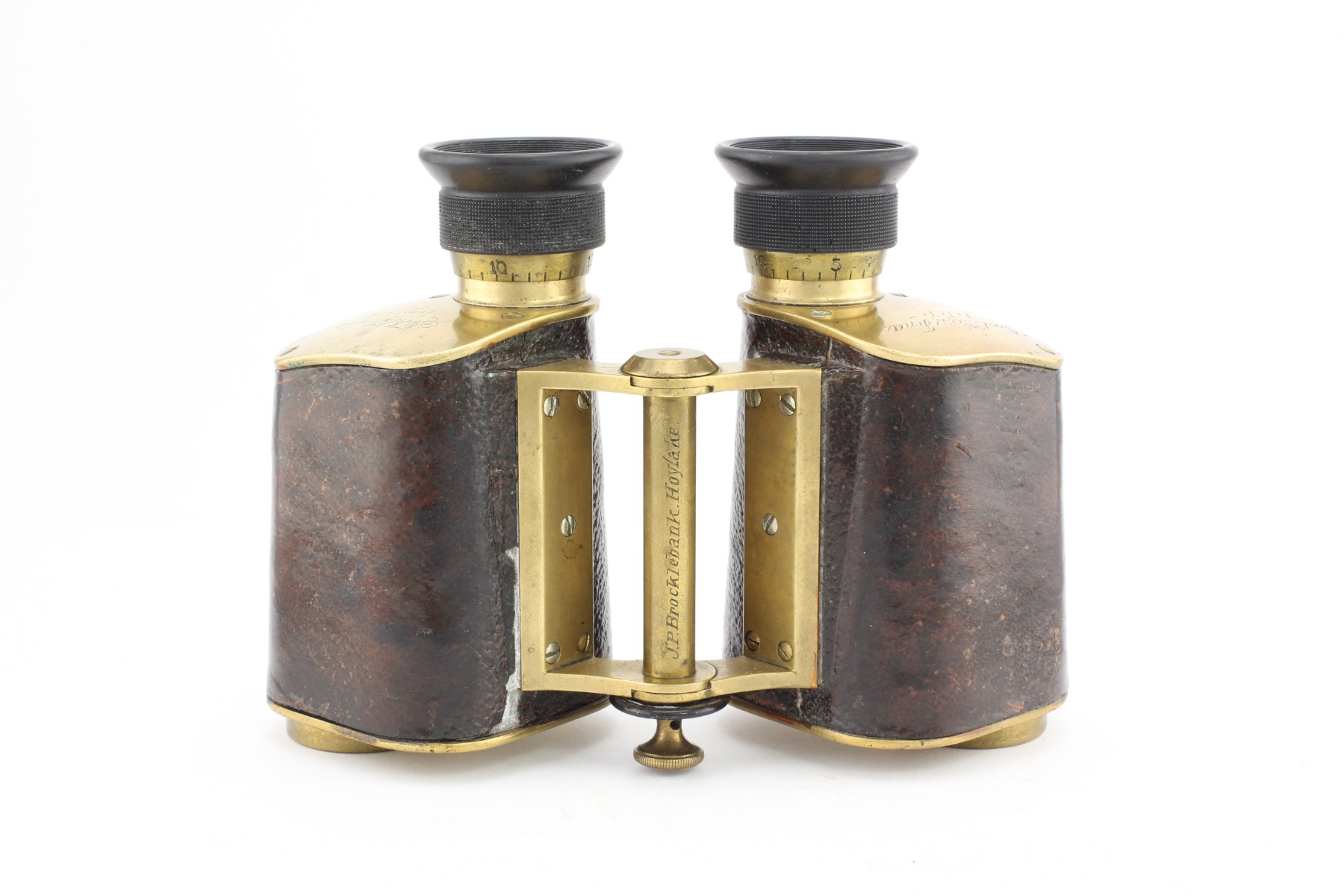

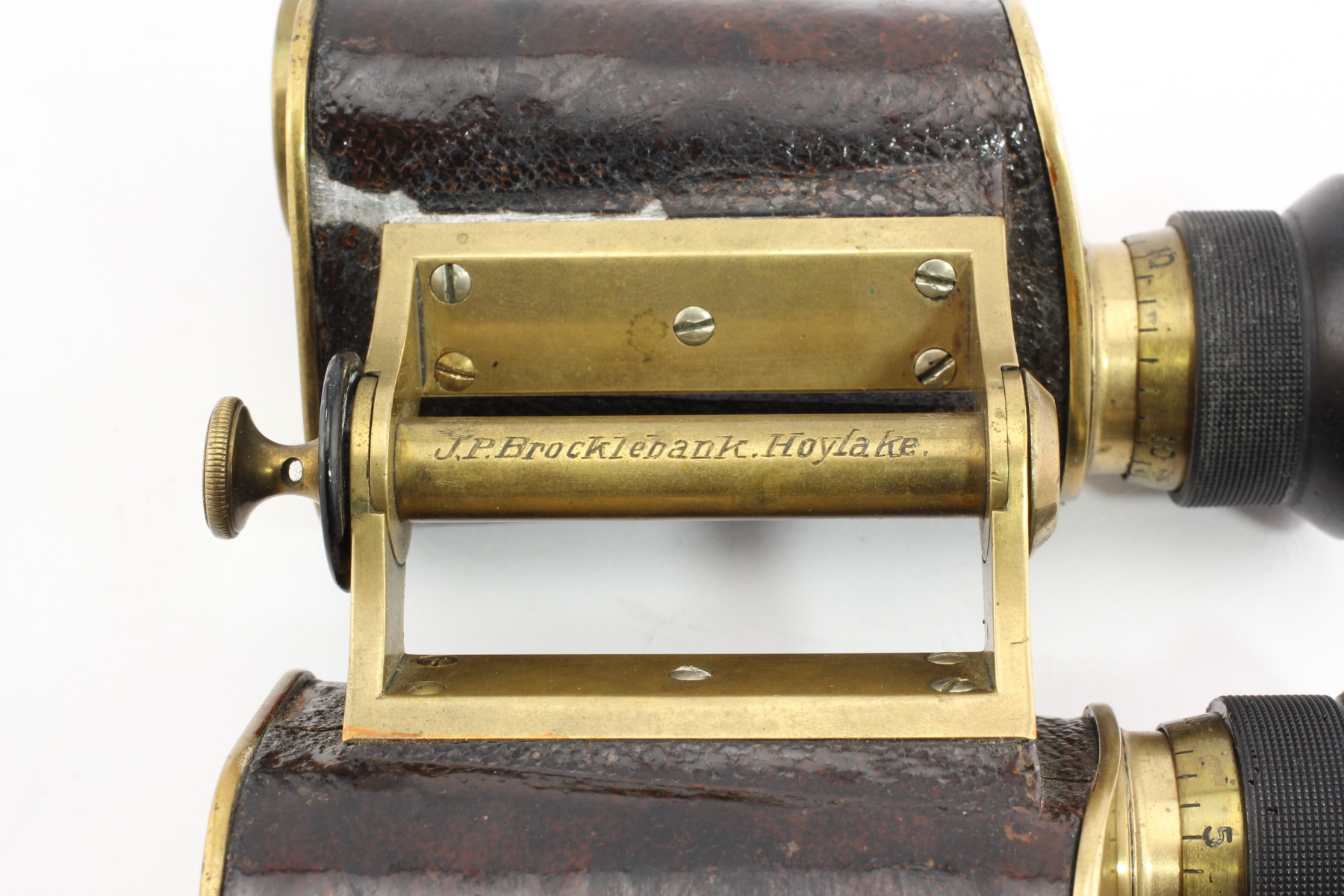

    The binocular has an engraving “J.P.Brocklebank. Hoylake” on the frame hinge (see photo). The binoculars belonged to Sir J.P.Brocklebank – an honored chief  of the oldest English Sea Boat Rescue Sation Hoylake (1909-1910)

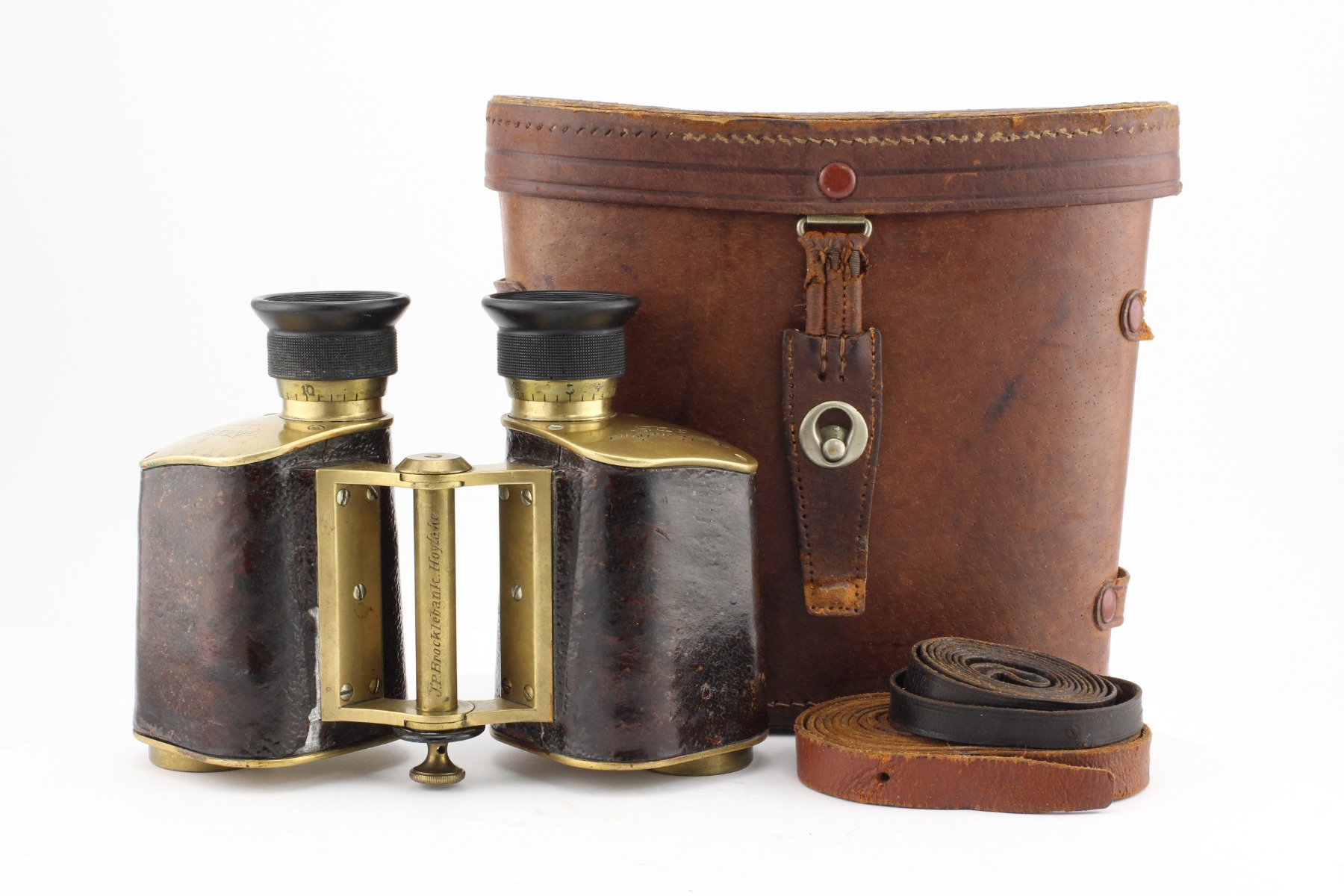

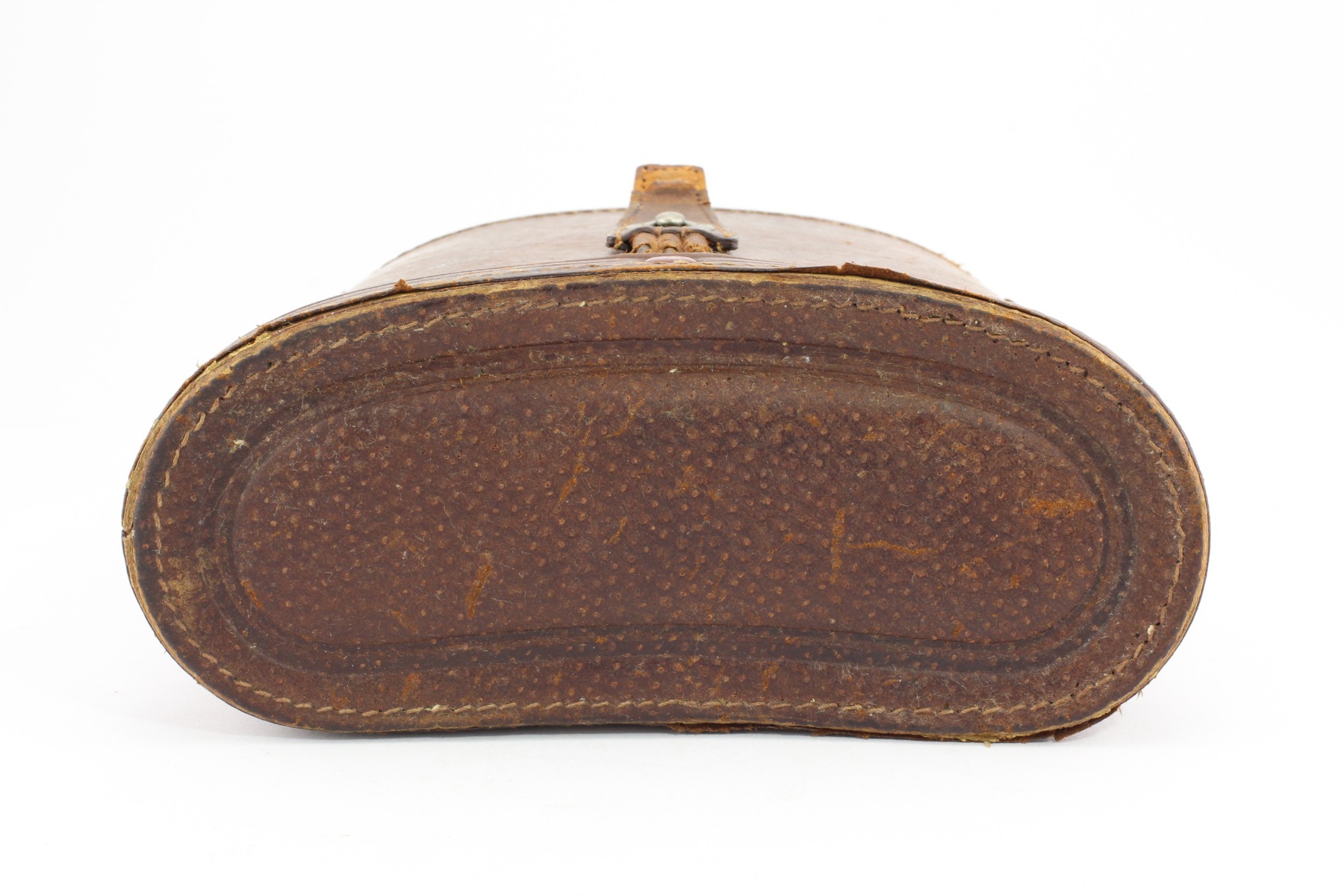

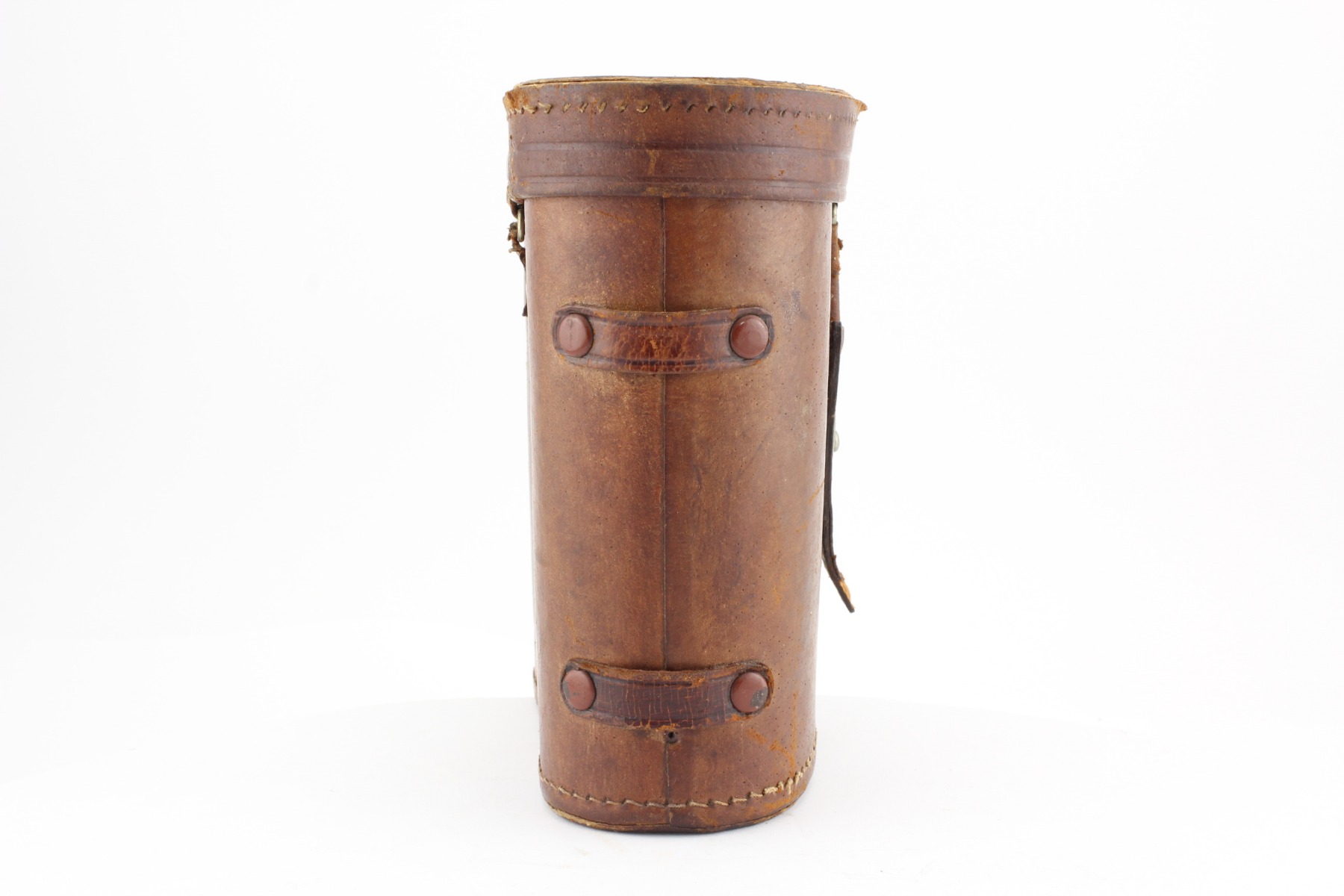

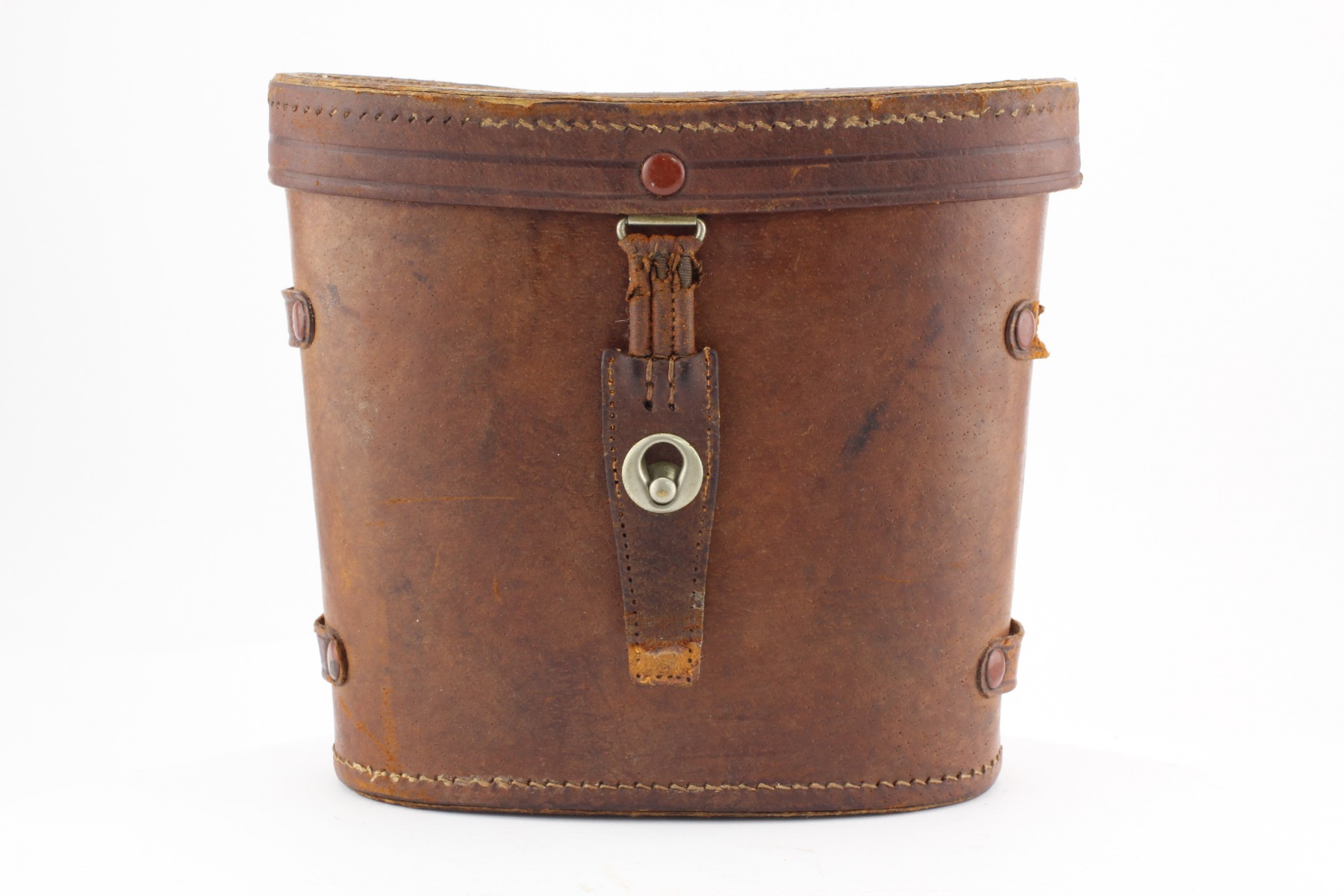

    Most likely that the binocular’s coffer has later origin and does not belong to this device (see photo). However, the question remains unsolved.
   The “older” model Feldstecher Vergr.=12 is available by the following link http://binocollection.com/catalog/binoculars-carl-zeiss-jena-feldstecher-vergr12.html
